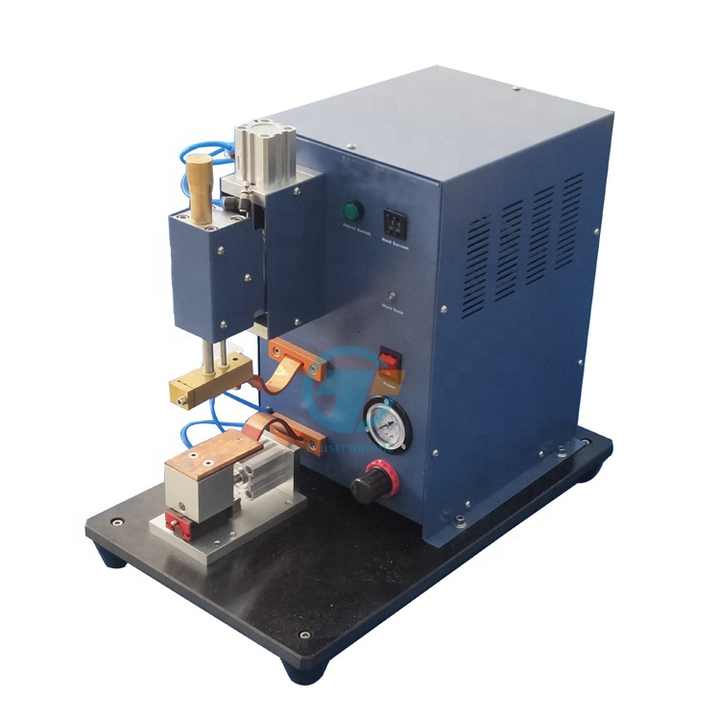

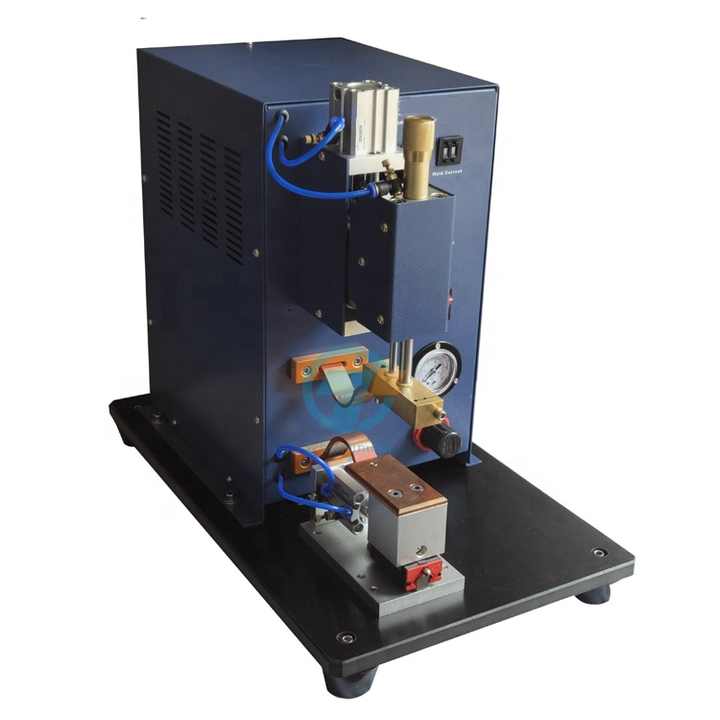

Precise Pneumatic Single Point Spot Welding Machine for Cylinder Battery MSK-330A , Spot Welder

Product Description

This is a Precise Pneumatic Single Point Welding Machine is specifically designed for professional Li-ion Battery Research. It is mainly used for welding the cylinder core's negative terminal (Nickel tab) to the bottom of the cylinder case. A Diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom. This machine is controlled by the microcontroller,  which is very easy to operate and can provide stable performance.



Specification of the Precise Pneumatic Single Point Spot Welding Machine For Cylinder Battery MSK-330A , Spot welder

Power Supply	220-240V, Single Phase 50/60Hz
Max. Power	10KW
Air Pressure Range	0.1 - 0.8 Mpa ( air compressor is required, please order at the related product) Attention: If a gas cylinder is used instead of an air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Welding Current	0-99A
Welding Thickness	0.03 - 0.25mm
Operation Temperature	-20 - 40℃
Controller	Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding
Pressure	The pressure applied on the welding needle can be adjusted independently and easy to operate
Design	Unique Photoelectric switch design Good appearance, small size and light weight Welding spot looks beautiful,free spark, stable welding current
Weight	45 kg (100 lbs)
Product Dimensions	30.5cm(L) x 50.5cm(W) x 49cm(H)
Warranty	one year limited with lifetime support

reference of the Precise Pneumatic Single Point Spot Welding Machine For Cylinder Battery MSK-330A , Spot welder
