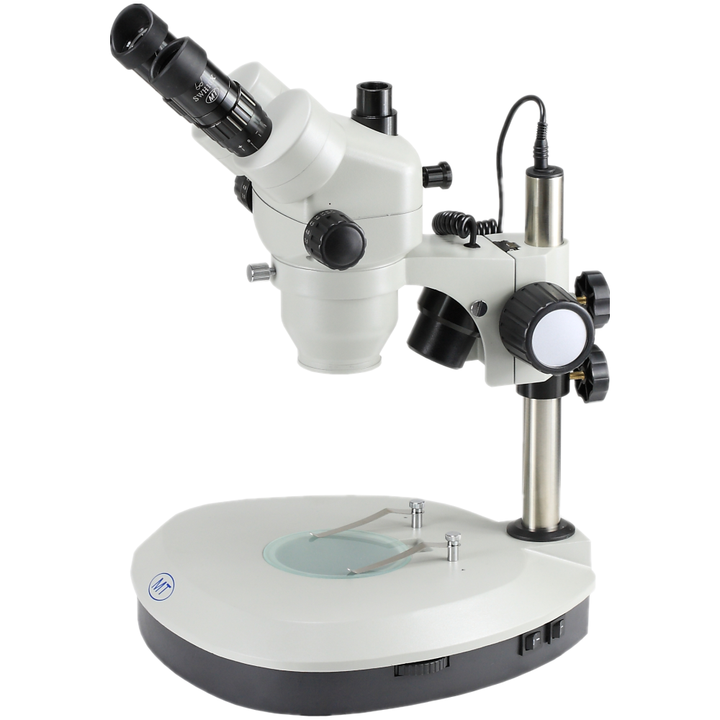

MZS1065T 65X Trinocular Zoom Stereo Microscope Digital Optical Microscope for Industrial Inspection in Russia Market

Main technology specifications of MZS1065T trinocular zoom stereo microscope digital optical microscope :

1.Total magnification 10X~65X(standard outfits), extend total magnification:390X

2.Zoom objective magnification 1.0X~6.5X, working distance 118mm.

3.With high eye point and wide field eyepiece SWH10X(Φ23mm)

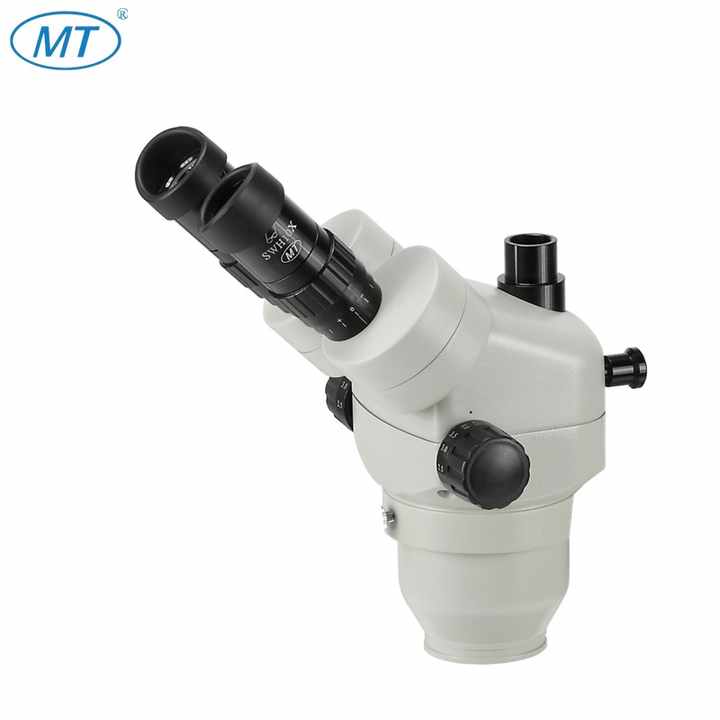

4. Binocular/ Trinocular eyetubes inclined 45°and main body can be rotated 360°

5.The range of adjusting the diopter is ±6

6.Interpupillary distance adjustment range 52mm~76mm

7.The range of adjusting the focus is 50mm(the square post is 100mm), the diameter of the center working stage is Φ95mm

8.The measurement to match between the support and the main body is Φ76mm

9.The distance between from the post center to the main body center is 140mm

10.The size of the round post is Φ25mm

11.Illuminators : the low illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V,10W).

Technical data of MZS1065T trinocular zoom stereo microscope digital optical microscope :

Eyepiece	Objective	Main body	With 0.37X objective	With 0.5X objective	With 0.7X objective	With 1.5X objective	With 2X objective
		1X~6.5X	0.37X~2.4X	0.5X~3.3X	0.7X~4.6X	1.5X~9.8X	2X~13X
10X	Total magnification	10X~65X	3.7X~24.1X	5X~32.5X	7X~46X	15X~98X	20X~130X
	Diameter of visual field(mm)	Φ23~Φ3.5	Φ62.2~Φ9.6	Φ46~Φ7	Φ32.9~Φ5	Φ15.3~Φ2.3	Φ11.5~Φ1.8
15X	Total magnification	15X~97.5X	5.55X~36.1X	7.5X~48.8X	10.5X~69X	22.5X~147X	30X~195X
	Diameter of visual field(mm)	Φ17~Φ2.6	Φ45.9~Φ7.1	Φ34~Φ5.2	Φ24.3~Φ3.7	Φ11.3~Φ1.7	Φ8.5~Φ1.3
20X	Total magnification	20X~130X	7.4X~48.1X	10X~65X	14X~92X	30X~196X	40X~260X
	Diameter of visual field(mm)	Φ14~2.2	Φ37.8~Φ5.8	Φ28~Φ4.2	Φ20~Φ3.1	Φ9.3~Φ1.4	Φ7~Φ1.1
30X	Total magnification	30X~195X	11.1X~72.2X	15X~97.5X	21X~138X	45X~294X	60X~390X
	Diameter of visual field(mm)	Φ9~Φ1.4	Φ24.3~Φ3.7	Φ18~Φ2.7	Φ12.9~Φ2	Φ6~Φ0.9	Φ4.5~Φ0.7
Working distance(mm)		118	275	195	145	50	35

Note: Please use lengthen round post when using 0.37X or 0.5X objective. When using 0.37X objective, the round post lengthen to 350 mm at least.

Connecting with stand of MZS1065T trinocular zoom stereo microscope digital optical microscope :

Optional accessories of MZS1065T trinocular zoom stereo microscope digital optical microscope :

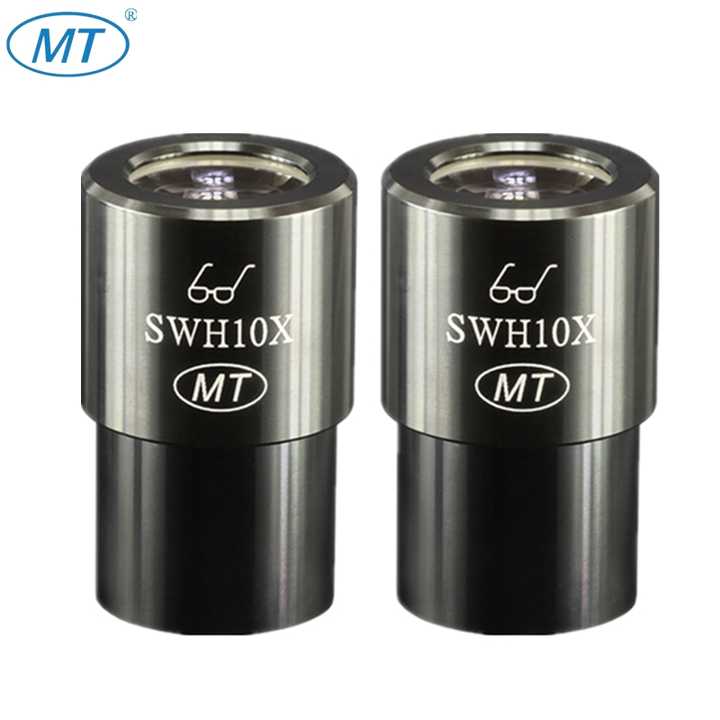

Auxiliary eyepiece of  MZS1065T trinocular zoom stereo microscope digital optical microscope :

Auxiliary objective of MZS1065T trinocular zoom stereo microscope digital optical microscope :

Auxiliary iluminators of MZS1065T trinocular zoom stereo microscope digital optical microscope :

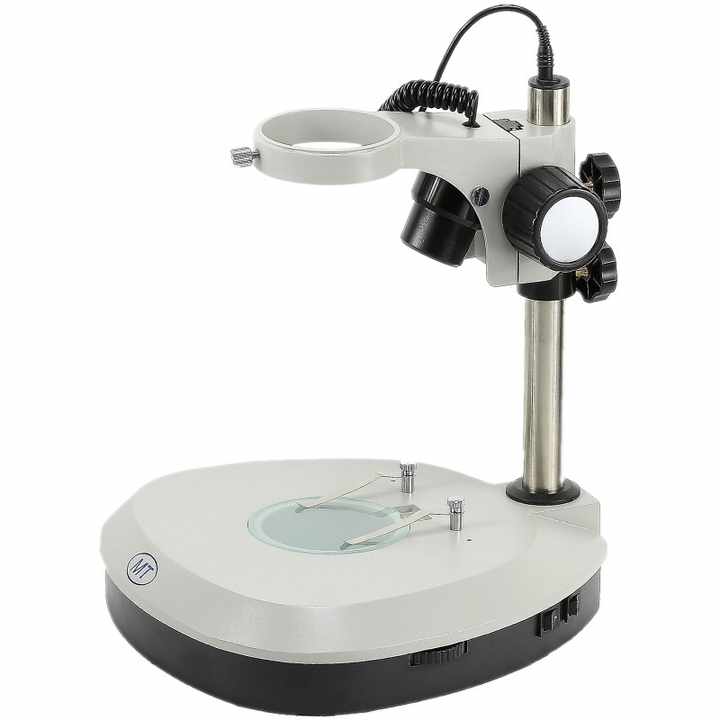

Optional stand and base stage of MZS1065T trinocular zoom stereo microscope digital optical microscope :

Many stands and stages can to be chosen , To know more information , please feel free to contact us !
