High Speed Quality Sleeve Gluing Center Finishing Sealing Machine

No reviews yet

Wenzhou Daba Machinery Co., Ltd.

Custom manufacturer 13 yrs

CN

High Speed Quality Sleeve Gluing Center Finishing Sealing Machine

High Speed Quality Sleeve Gluing Center Finishing Sealing Machine

High Speed Quality Sleeve Gluing Center Finishing Sealing Machine

High Speed Quality Sleeve Gluing Center Finishing Sealing Machine

High Speed Quality Sleeve Gluing Center Finishing Sealing Machine

High Speed Quality Sleeve Gluing Center Finishing Sealing Machine

Service

Free replacement parts

View details

Key attributes

Industry-specific attributes

packaging type

Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case

packaging material

Plastic, paper, Metal, Glass, Wood

driven type

Electric

Voltage

3 Phase 380V 50HZ

Other attributes

automatic grade

Semi-automatic

warranty

1 Year

Application

Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles

place of origin

Wenzhou,China

brand name

DABA

dimension(l*w*h)

3000x1500x1750mm

key selling points

High Productivity

machinery test report

Provided

video outgoing-inspection

Provided

core components

PLC, Gear, Gearbox, motor, Bearing, Engine, Pressure vessel, Pump

After-sales Service Provided

Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Model

DBHZ-260D

Materials

OPS,PVC,PET

Film thickness

20-80um

Width of unwinding

580mm

Max.Unwinding diameter

500mm

Rewinding width

25mm-240mm

Max.Rewinding diameter

900mm

Max speed of Machine

450m/min

Power

3 Phase 380V 50HZ

Supply Power

7KW

Packaging and delivery

Selling units

Single item

Single package size

30X15X17 cm

Single gross weight

16.000 kg

Show more

Lead time

Quantity (sets)	1 - 1	> 1
Lead time (days)	45	To be negotiated

Customization options

Product descriptions from the supplier

Product Overview

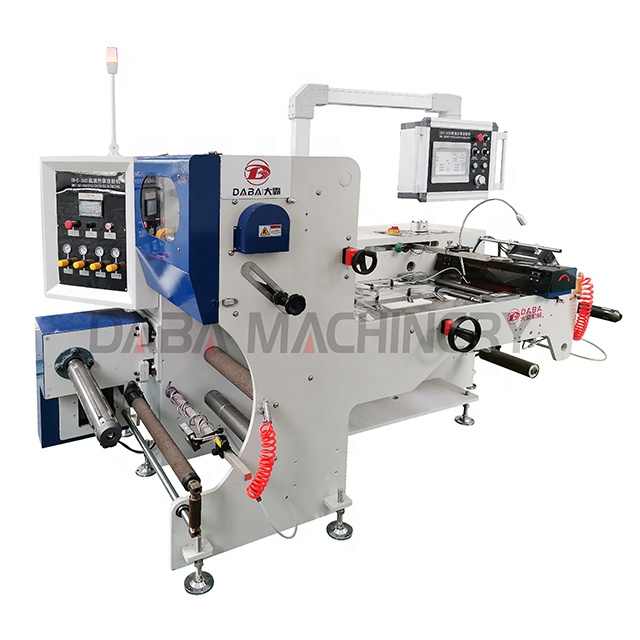

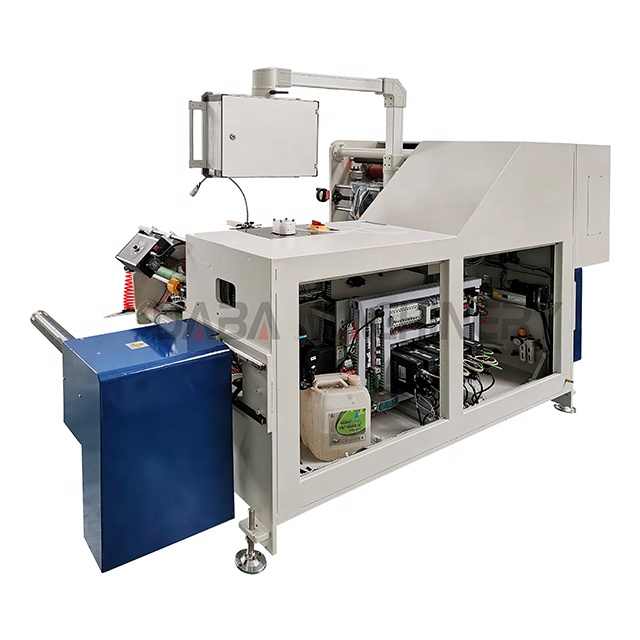

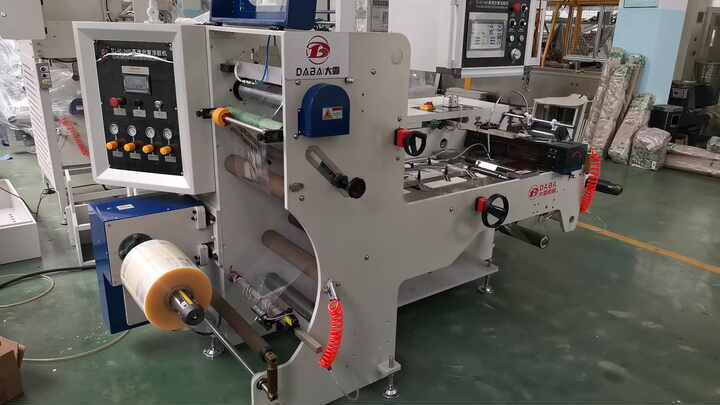

High speed good quality daba sleeve gluing center sealing machine

Unwinding system: 1. Unwinding shaft is 3 inch air shaft. 2. Edge position correction system: Photo sensor get the signal and send it to controller. Controller give the signal to execution equipment and keep straight film edge. 3. Unwinding tension controlling system: It use servo automatically and accurately control unwinding tension . 4. Air extrude device:it makes small holes on the film, when the label shrink in the tunnel, the air will extrude via the small holes. 5. Double vertical perforation device Forming system: 1.Mold less type :It solves the problem of the film scratches during the machine working. 2.Width adjusting : The machine adjusts the width by scale wheels,it can adjust accurately and easily when changing the width of label.

3.Forming tension control: use two servo motor to control forming tension softly and accurately.

4.Pump Gluing system is controlled by PLC. It will keep the same step with the machine running speed and make the glue well distributed. Gluing quantity controlling system can control the glue quantity, machine stop glue getting back, no pollution on film, operation easily.

Rewinding system: 1. Rewinding shaft adopt 3inch air shaft. 2. Rewinding tension controlling system: Servo motor automatically and accurately to control the tension. 3. Stroboscope:It keeps the same step with the machine, it’s easy to detect the gluing condition when high speed. 4. Oscillation rewinding system : Use servo motor control the shrink sleeves roll move left to right . The parameter of it can be set by touchscreen. Static eliminating eliminator.

PRODUCT SPECIFICATIONS

Machine Parameter:
Model	DBHZ-260D
Materials	OPS,PVC,PET
Film thickness	20-80um
Width of unwinding	580mm
Max.Unwinding diameter	500mm
Rewinding width	25mm-240mm
Max.Rewinding diameter	900mm
Max speed of Machine	450m/min
Power	3 Phase 380V 50HZ
Supply Power	7KW

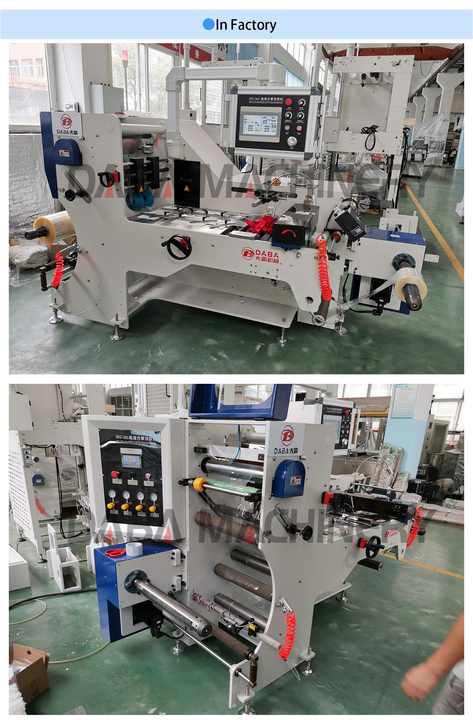

Details Images
