Household AC Din Rail Energy Meter Multifunction Power Analyser 110 220V 100A Power Data Logger

No reviews yet

Shanghai Pinyan M&C Technology Co., Ltd.13 yrs

CN

Household AC Din Rail Energy Meter Multifunction Power Analyser 110 220V 100A Power Data Logger

Household AC Din Rail Energy Meter Multifunction Power Analyser 110 220V 100A Power Data Logger

Household AC Din Rail Energy Meter Multifunction Power Analyser 110 220V 100A Power Data Logger

Household AC Din Rail Energy Meter Multifunction Power Analyser 110 220V 100A Power Data Logger

Household AC Din Rail Energy Meter Multifunction Power Analyser 110 220V 100A Power Data Logger

Household AC Din Rail Energy Meter Multifunction Power Analyser 110 220V 100A Power Data Logger

Key attributes

Industry-specific attributes

Measuring Current Range

20A~7200A

Measuring Voltage Range

5~528V AC

Accuracy Class

IEC62053-22 Class 0.5S

Other attributes

Place of Origin

Shanghai, China

Brand Name

MEATROL

Model Number

MQ21

Operating Temperature

-25℃~+55℃

Dimensions

13*9.5*5.6CM

Type

Three phase Power data logger

Mounting

DIN RAIL

Supported types of current sensor

Rogowski coil, Voltage-output current clamp

Storage

16GB Micro SD card,USB data download

Display screen

1.3-inch color OLED

Power supply

Electricity from major loop, 90~528VAC

Application

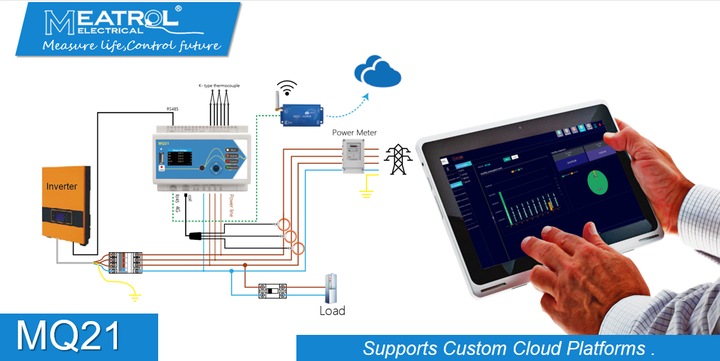

Power analysis,Solar generation, Event data record,Fault record

Communication

Standard Modbus TCP and Modbus RTU protocols

Port

RJ45, RS485,SATA interface, terminals

Optional service

On-Line Power Quality Monitoring Platform

Packaging and delivery

Packaging Details

Poly bag and standard export carton

Selling units

Single item

Single package size

25X25X15 cm

Single gross weight

2.000 kg
