| Quantity (pieces) | 1 - 5 | > 5 |
| Lead time (days) | 15 | To be negotiated |

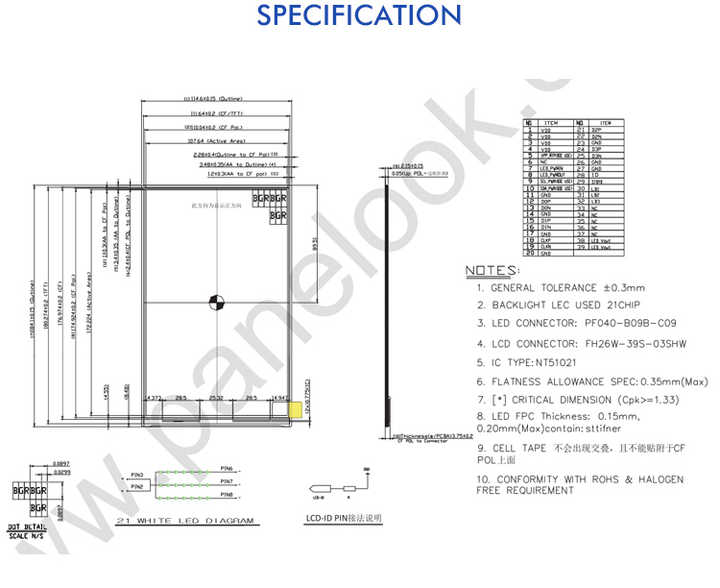

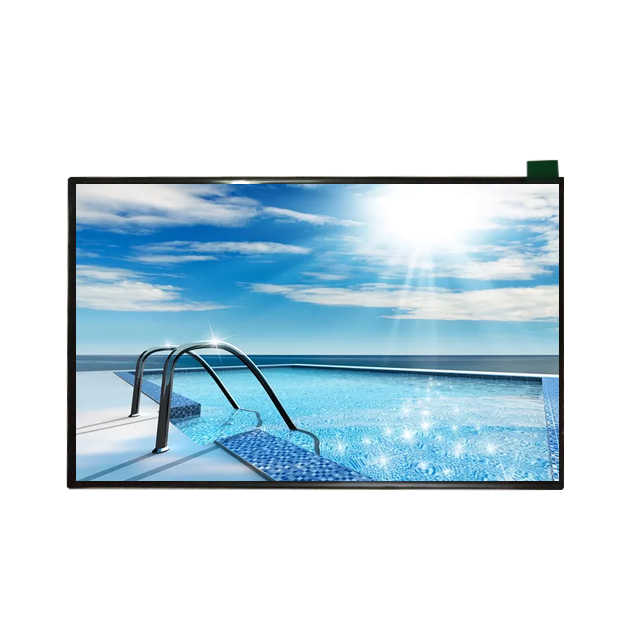

| LCD SPECIFICATION | ||||||
| Diagonal Size | 8.0 inch | Type | a-Si TFT-LCD, LCM | |||
| Resolution | 1200(RGB)×1920 [WUXGA] | Configuration | RGB Vertical Stripe | |||
| Display Area | 107.64(H)×172.224(V) mm | Outline Dim. | 114.6(H)×184.1(V) ×3.95(D) mm | |||
| Outline Size | - | Treatment | Hard coating (3H) | |||
| Luminance | 390 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (TM) | |||
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Response Time | 25 (Typ.)(Tr+Td) | |||
| Best View on | Symmetry | Operating Mode | ADS, Normally Black, Transmissive | |||
| Display Colors | 16.7M 63% NTSC | Light Source | WLED [7S3P] , 15K hours , W/O Driver | |||
| Frequency | 60Hz | Touch Screen | Without | |||
| Weight | 80.0g (Max.) | Application | Pad & Tablet | |||
| Interface Type | 39 pins MIPI (4 data lanes) , Connector | |||||
| Power Supply | 3.3V (Typ.) | |||||
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C | |||||
| Product features |
| • Support 1920* 1200@60hz resolution LVDS screen |

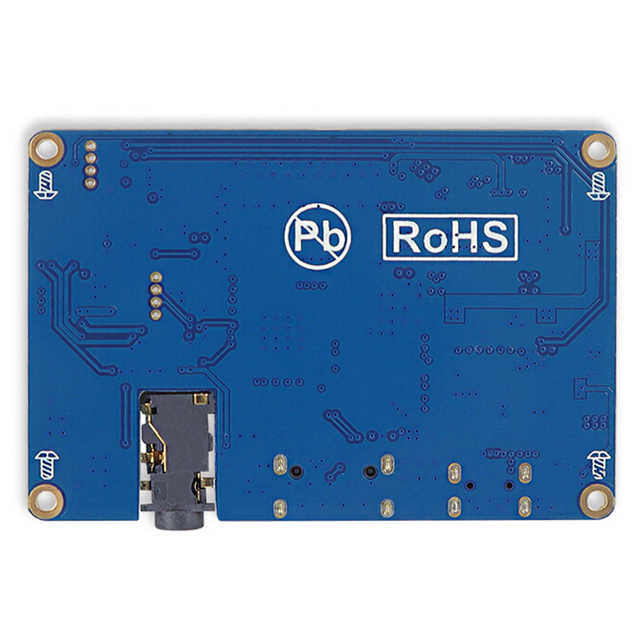

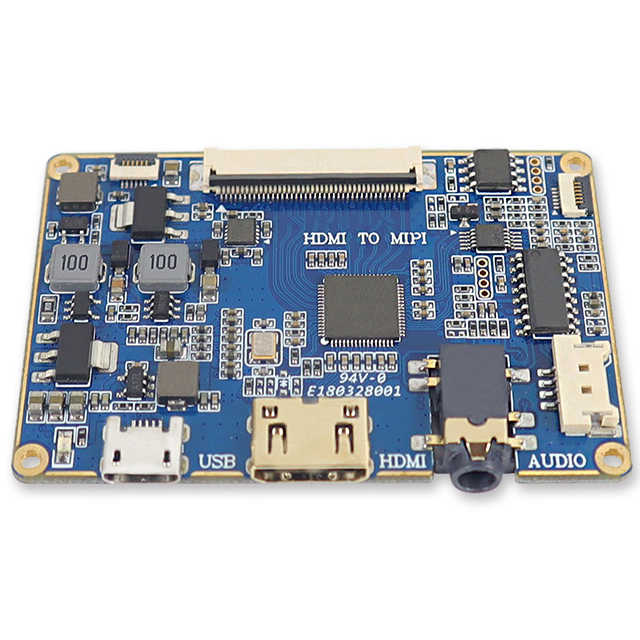

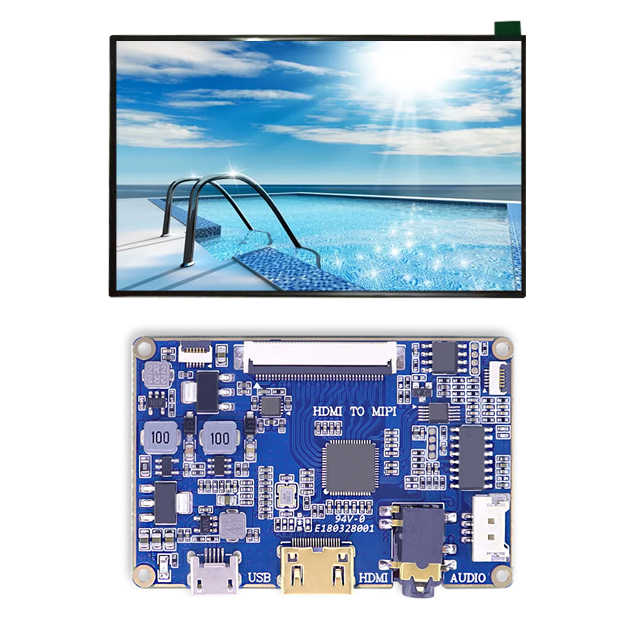

| Default parameters |
to LVDS Signal conversion drive board |
||
| Product model |
ET53L-2H-V4.0 |
Working temperature |
-20°~70° |

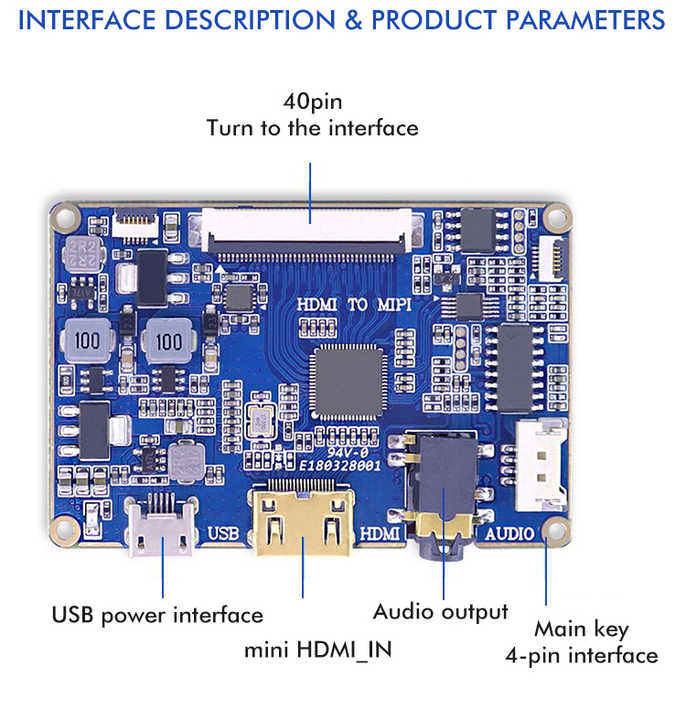

| Power interface |
Support DC_5V/2A power supply (power base type-c_16pin) |
||
| Product size |
96(W)*51(H)*1.0(D)mm(The highest 5.4 mm thick) |
||
| Input signal |
Dual, type-c 5V power supply, USB touch |
||
| Output signal |
51pin_LVDS, audio output, speaker |
||
| Supported resolution |
1920*1200@60Hz LVDS Screen |
||
| Application field |
Hd displays, advertising machines, game consoles... |
||
1.What advantages do you have?
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service, products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
